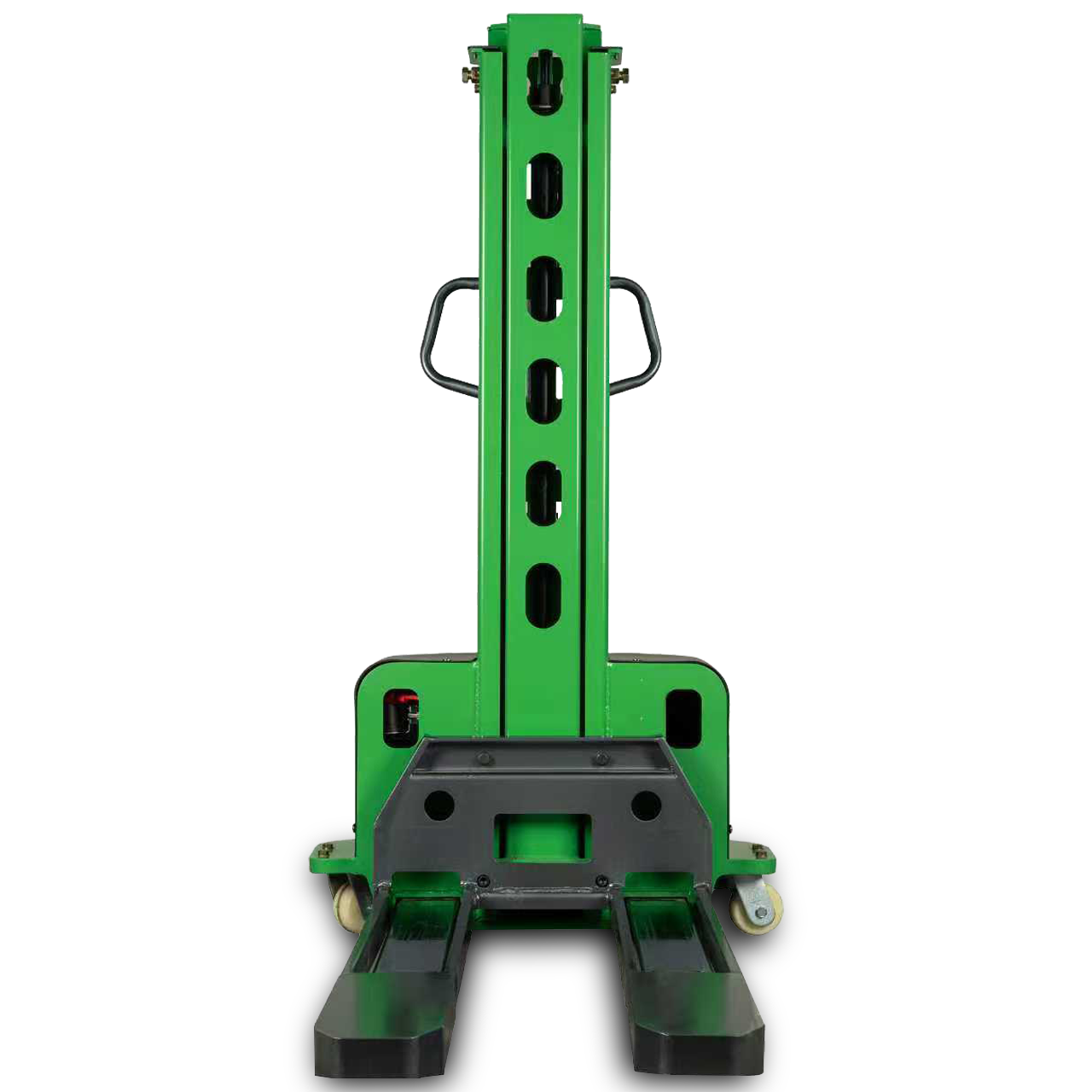

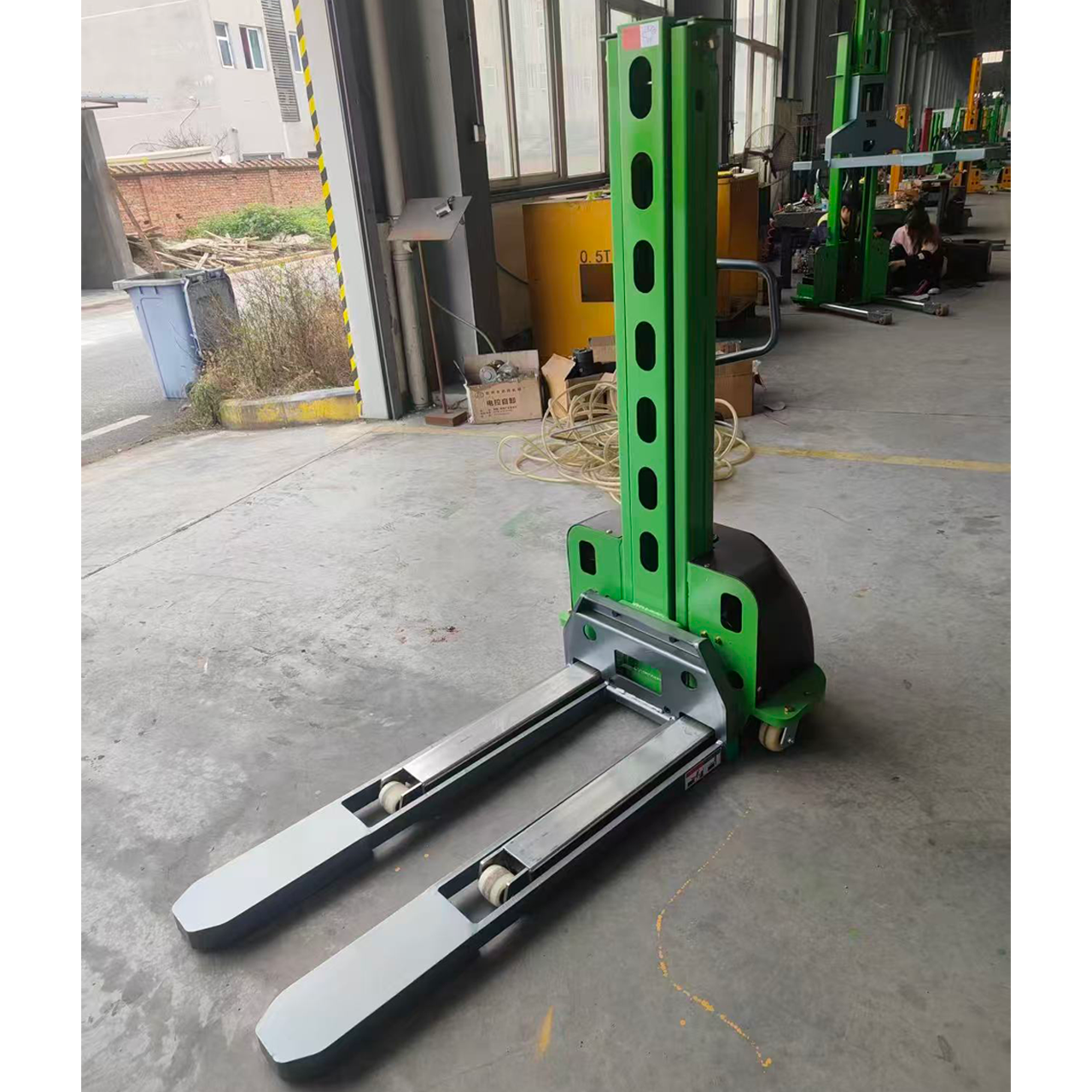

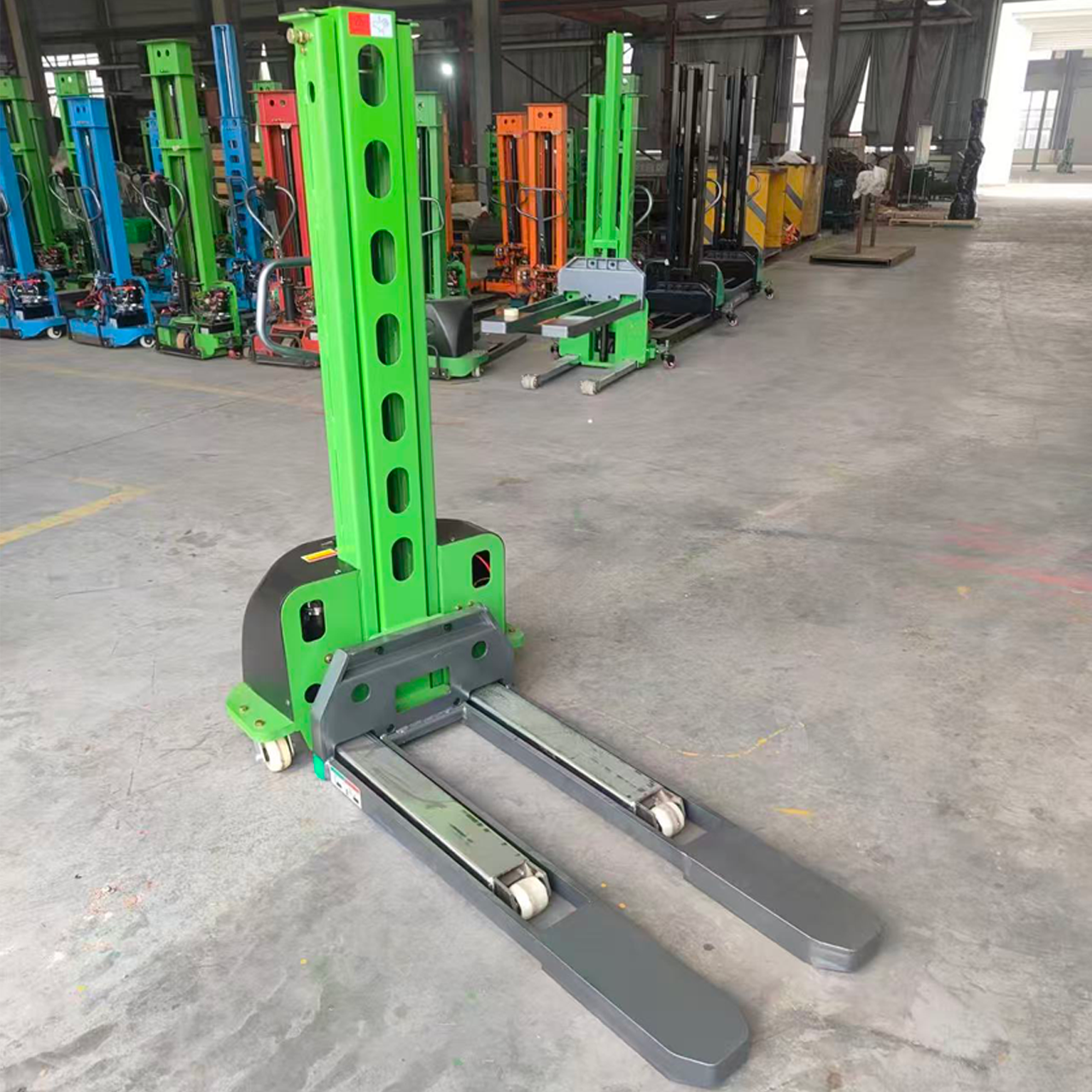

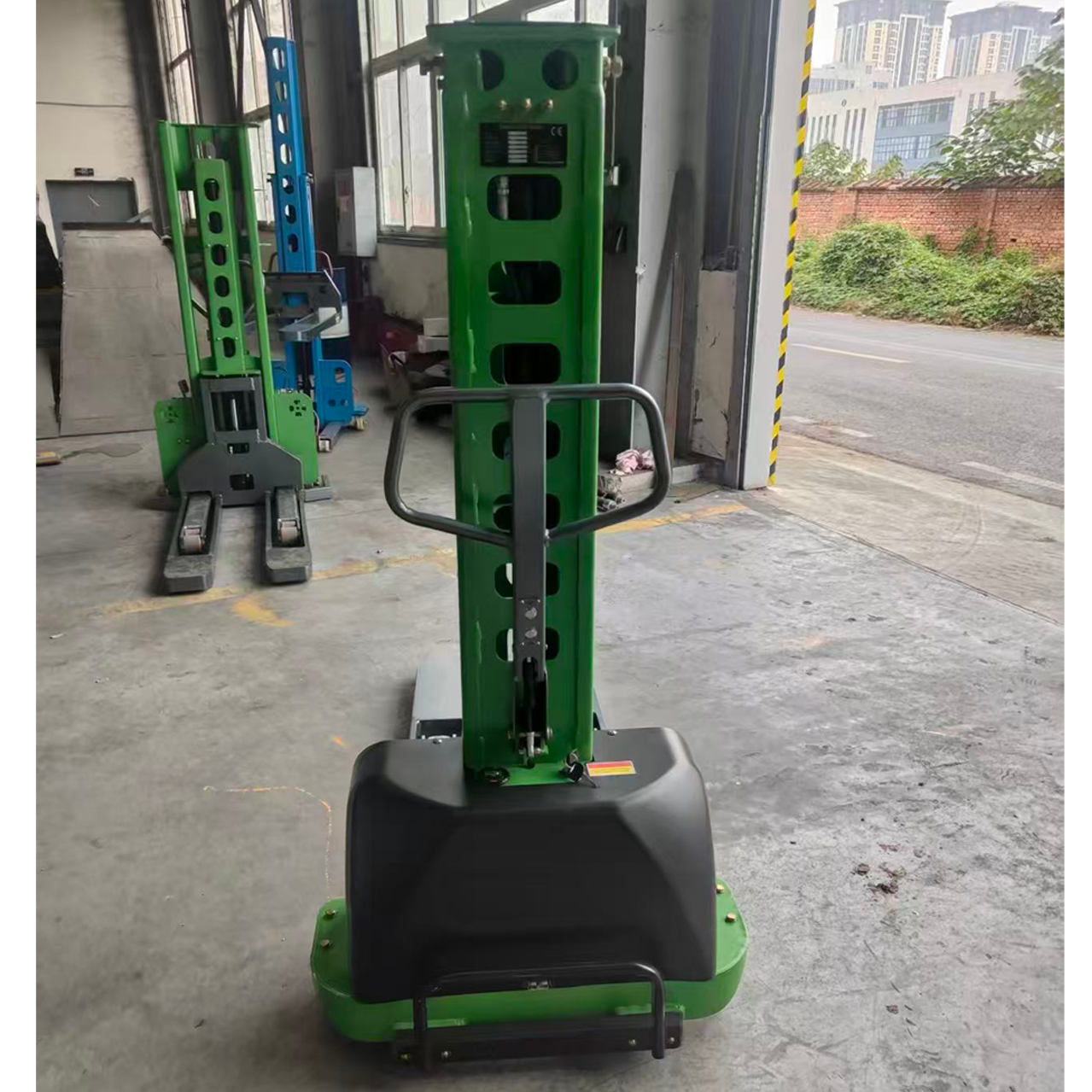

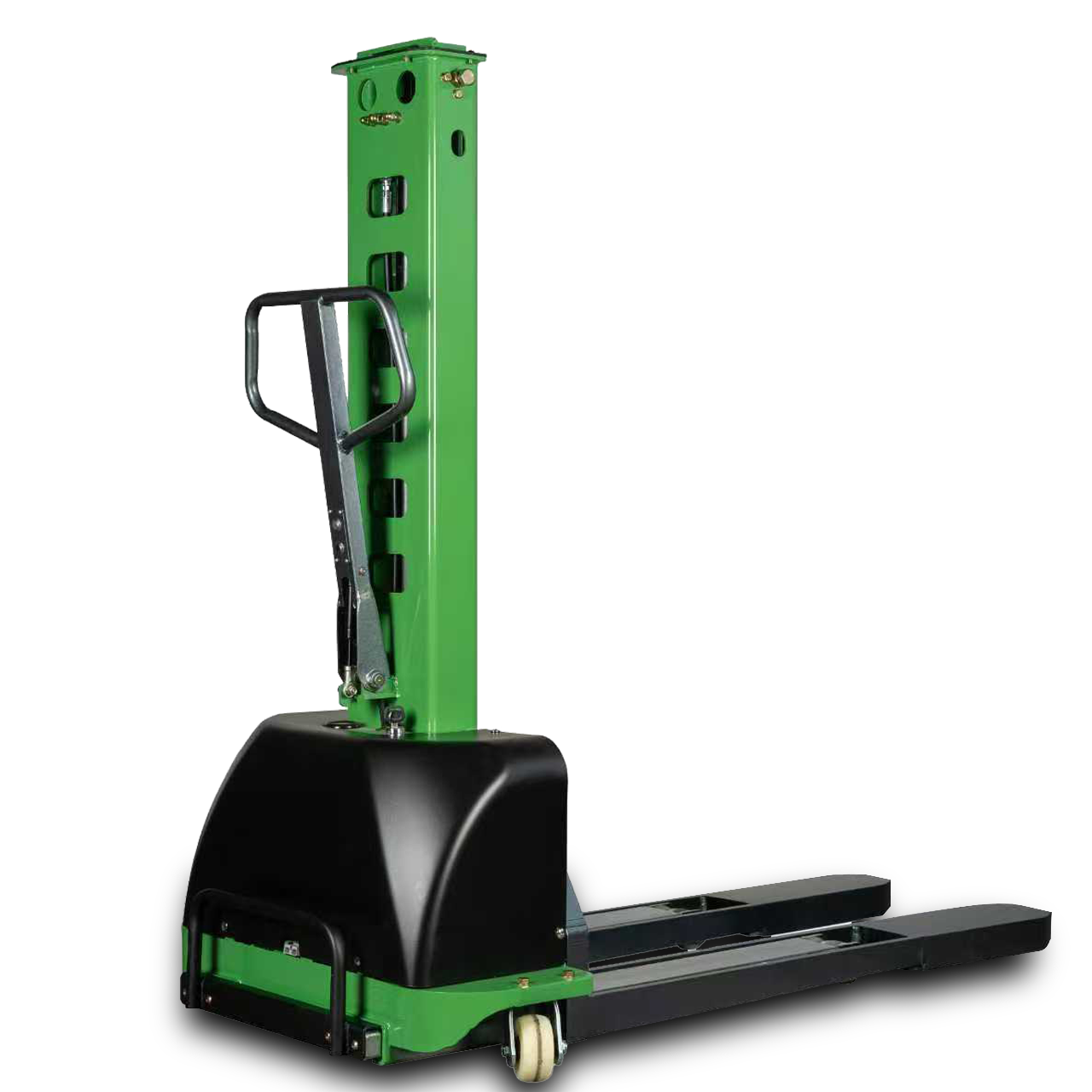

High Quality Semi-electric Loading Stacker 1000kg Capacity 1.3m/1.6m Lifting Height Precision Model for Warehouse & Logistics

Informazioni di base

Luogo di origine:	Cina
Marca:	KAD
Certificazione:	CE/ISO9001
Numero di modello:	CDD05C

Quantità di ordine minimo:	1
Prezzo:	$1000
Imballaggi particolari:	pallet in ferro + film di plastica
Tempi di consegna:	7 giorni di lavoro
Termini di pagamento:	L/C, D/A, D/P, T/T, Western Union
Capacità di alimentazione:	50 unità/mese

Miglior prezzo Contattaci

Modello n.:	CDD05C	Capacità di carico:	1t
Centro di carico:	500 mm	Altezza di sollevamento:	1600 mm
Capacità della batteria:	24v/210Ah	Dimensione della forcella:	122010040mm
Gioco del terreno:	30 mm	Raggio di sterzata:	1500 mm
determinare velocità:	4km/h	Pendenza:	3°/5°
Motore di guida:	0,8 kW	Sollevamento del motore:	0,8 kW
Dimensione del pneumatico:	300/250mm	Dimensioni complessive:	1570786/9361150 mm
Peso:	215Kg
Evidenziare:	semi-electric pallet stacker 1000kg capacity , electric loading stacker 1.6m lifting height , warehouse stacker with warranty

High Quality Semi-electric Loading Stacker 1000kg Capacity 1.3m/1.6m Lifting Height Precision Model for Warehouse & Logistics

The wide-view mast and smooth vehicle shape, with multi-curved cover parts, unrestricted vision and improved working efficiency; the H-channel steel mast is resistant to bending and torsion, strong and durable, ensuring the vehicle's load capacity; the maintenance-free AC motor minimizes maintenance costs; the standard integrated handle integrates multiple functions for quick and easy operation; the front cover is easy to disassemble and various components are centrally arranged to make maintenance faster and smoother.
advantage:

1. All-Alloy-Steel Construction (High Strength & Rigidity)
2. Hydraulic Operation (Enhanced Reliability & Durability) 3.Lightweight Design (Improved Maneuverability)
4.High-Efficiency Gear Pump & Motor (Energy-Saving)
5.Independent Power & Gravity Modes (Gravity Mode for Zero-Power Descent & Extended Range)
6.Chrome-Plated Finish (Excellent Corrosion/Wear Resistance, Maintains Smooth Telescopic Action)

If you have any questions about this Semi-Electric Self-loading Stacker, please feel free to contact me via the following methods. I will be on call 24 hours a day. Thank you.

Model		CDD05C	CDD07Z	CDD10Y
Type of Power		Battery	Battery	Battery
Max. Load	kg	500	700	1000
Load Center	mm	400	400	400
Wheelbase	mm	815	788	780
Wheel Distance: FR	mm	380	405	398/518
Wheel Distance: RR	mm	665/815	690/810	708/928
Type of Operation		Walk	Walk	Walk
Front Wheel	mm	Φ70×60	Φ80×60	Φ70×60
Universal Wheel	mm	Φ100×45	Φ100×50	Φ100×50
Middle Wheel	mm	Φ45×26	Φ65x30	Φ65×30
Length of Outriggers	mm	746	735	780
Max. Fork Height	mm	800/900/1000/1100/1200/1300/1500/1600	800/900/1000/1100/1200 /1300/1500/1600	800/900/1000/1100/1200 /1300/1500/1600
External Distance Between Forks	mm	535/685	565/685	565/(685)
Length of Fork	mm	1150	1150	1150
Thickness of Fork	mm	60	60	60
Width of Fork	mm	155	190	193
Overall Length	mm	1570	1552	1544
Overall Width	mm	786/936	809/929	835/955
Overall Height (Mast Closed)	mm	1150/1207/1307/1407/1507/1607/1807/1907	1155/1255/1355/1455/1555/1655/1855/1955	1166/1266/1366/1466/1566 /1666/1866/1966
Overall Height (Max. Fork Height)	mm	1870/2070/2270/2470/2670/2870/3270/3470	1875/2075/2275/2475/2675/2875/3275/3475	1850/2050/2250/2450/2650 /2850/3250/3450
Lifting speed	mm/s	55	55	55
Descent speed	mm/s	80	100	100
Lift Motor Power	kw	0.8	0.8	1.6
Battery Voltage	v	12	12	12
Battery Voltage	Ah	52	52	52
Battery Weight	kg	13.5	13.5	13.5
Total Weight(Include Battery)	kg	214/218/223/228/233/240/255/260	243/247/251/255/259/263/272/276	285/290/295/300/305 /310/319/324
