Luogo di origine: | Cina |
---|---|
Marca: | KAD |
Certificazione: | CE |
Quantità di ordine minimo: | 1 |
Prezzo: | 1299-1500 |
Imballaggi particolari: | pallet in ferro + film di plastica |
Tempi di consegna: | 7 giorni di lavoro |
Termini di pagamento: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Capacità di alimentazione: | 50 unità/mese |
Evidenziare: | electrical glass vacuum lifter,hydraulic panel lifting equipment,electric pallet stacker with warranty |
---|

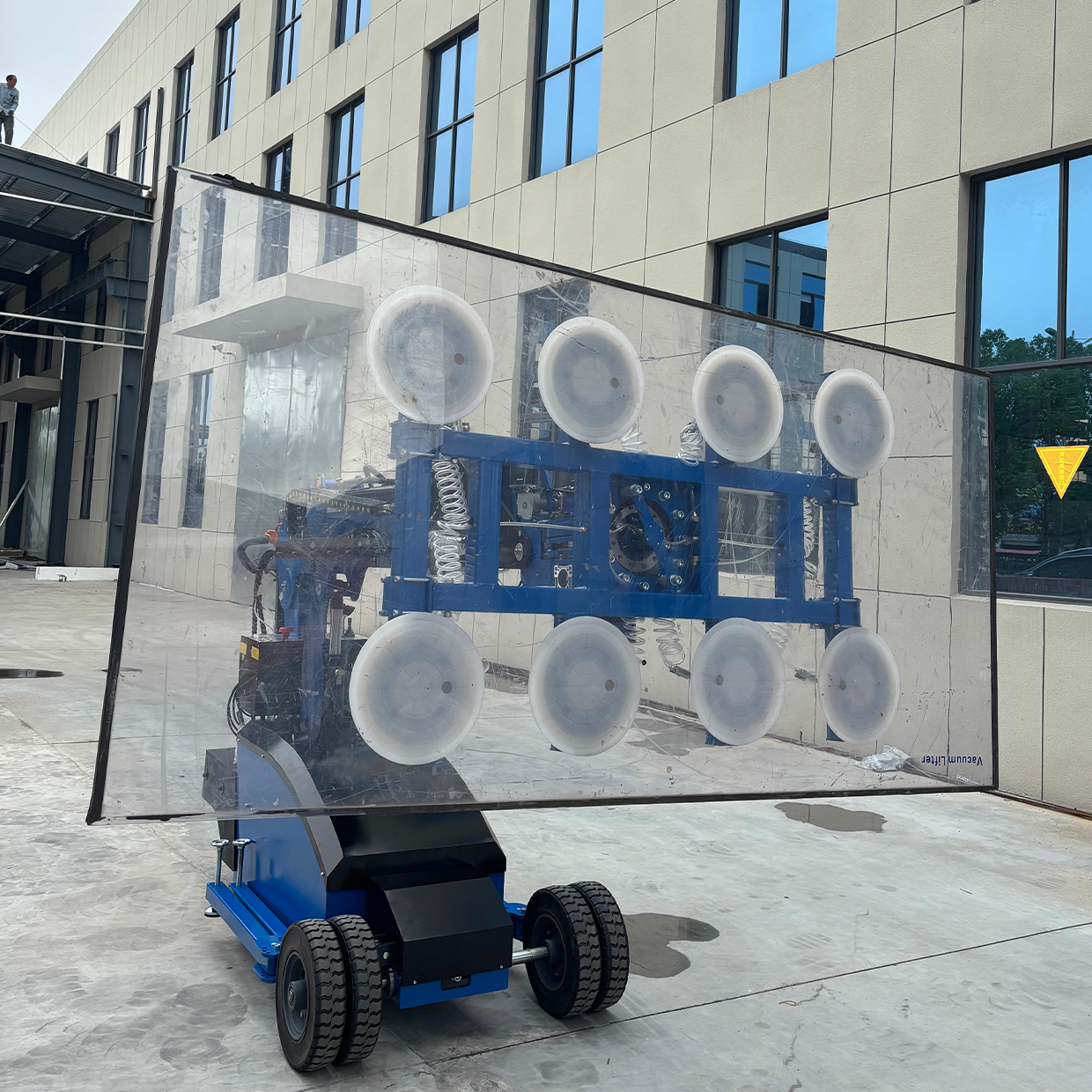

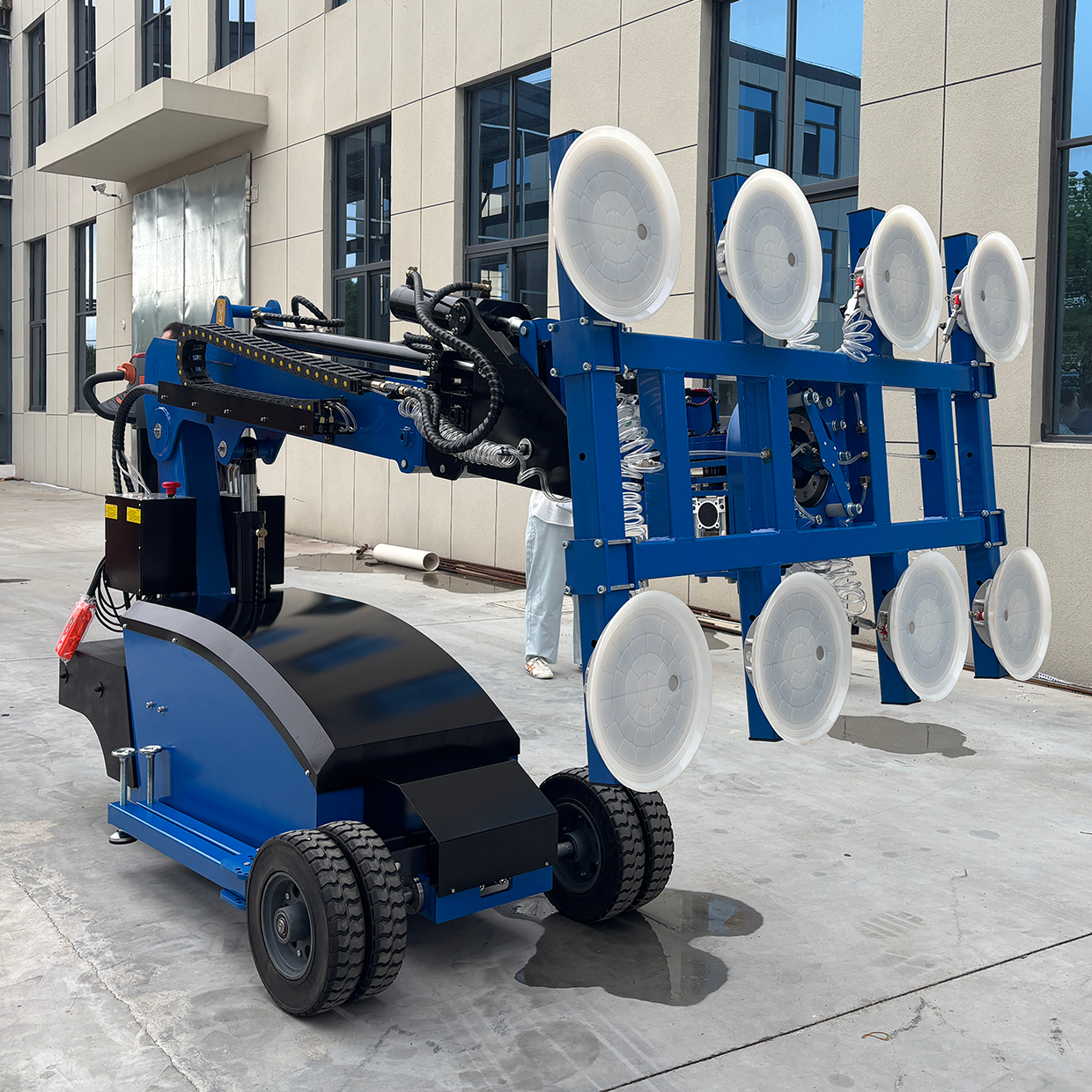

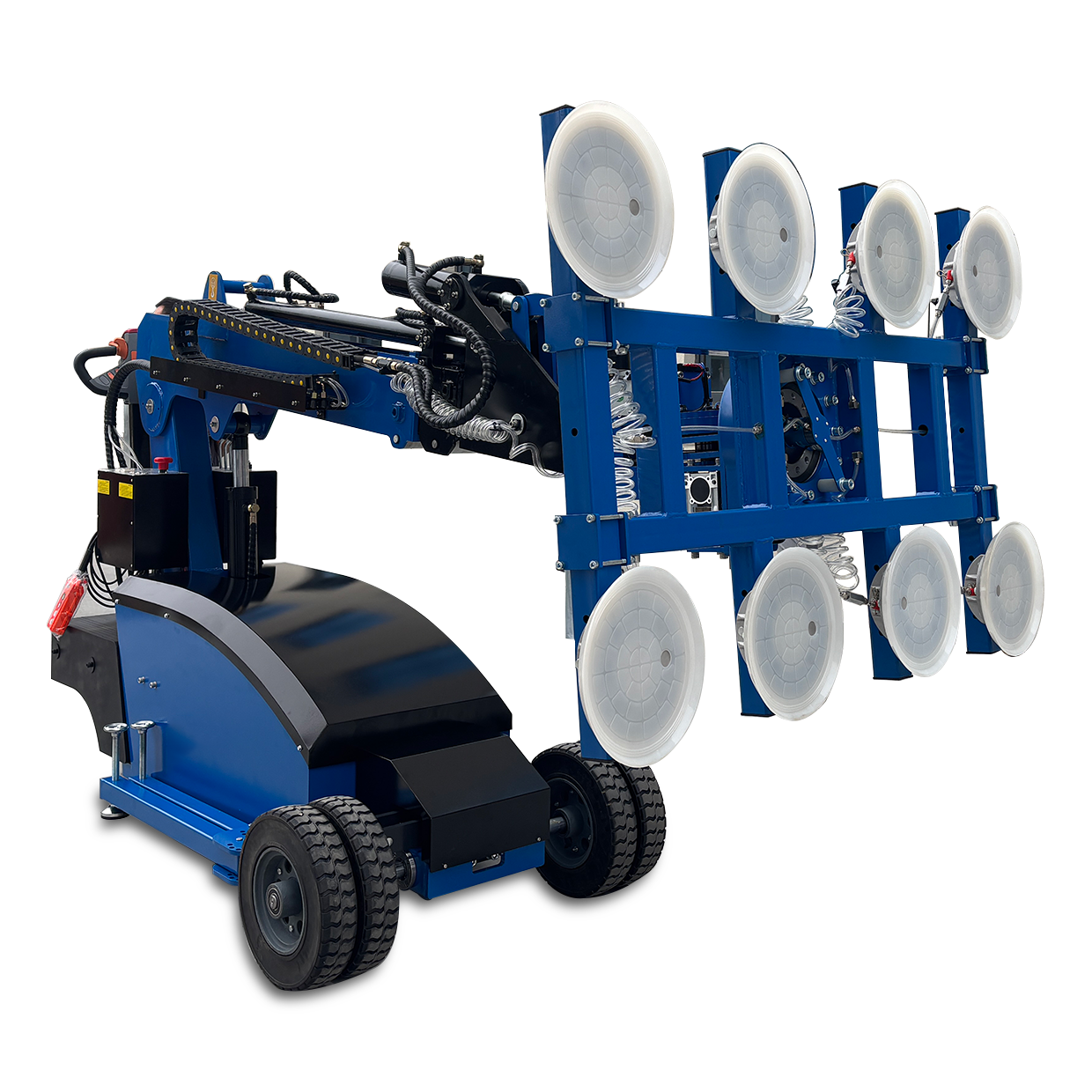

Our vacuum glass lifting robot is a practical and powerful tool designed to streamline material handling in various industries. It can easily lift, move, and position glass panels, metal sheets, stone slabs, and wooden boards with high precision and minimal effort. Built with user-friendly controls and a durable structure, it ensures smooth operation while reducing labor intensity. Safety is prioritized through features like a vacuum alarm, automatic braking, emergency stop, charging protection, counterweight support, and stable legs. Also known as a glass installation robot, vacuum suction lifter, electric glazing assistant, or robotic suction carrier, it is an ideal choice for safe and efficient lifting tasks.
Click here to get latest price
If you have any questions for this Semi electric heavy-duty circular clamp ,please contact me as below,i will stand by 24 hours.Thanks
Model
|
/
|
GL600/800
|
Driving mode
|
/
|
Front Axle Drive
|
Max.Load
|
kg
|
600 /800
|

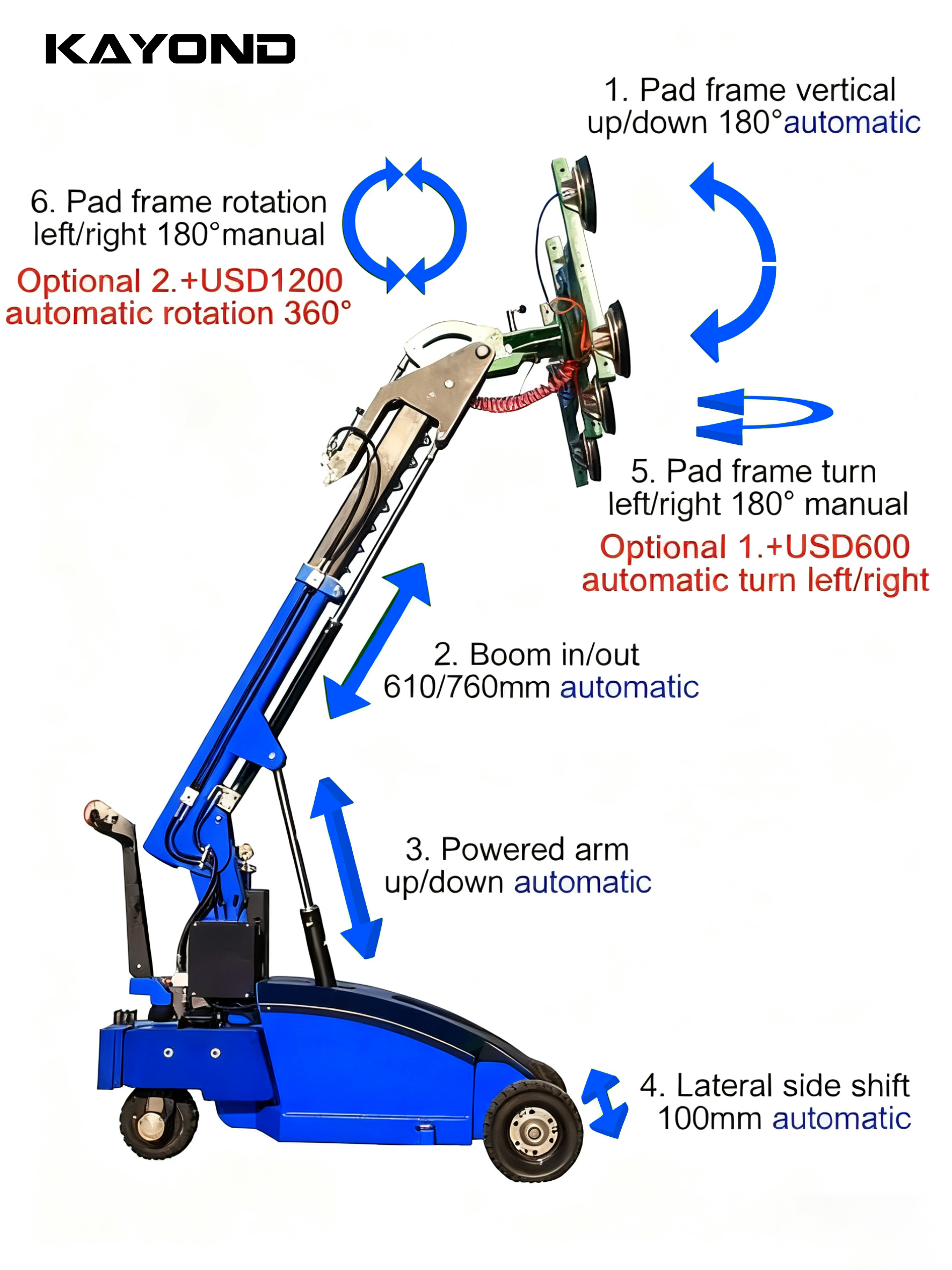

Rotating
|
°
|
Manual 360° (Automatic type for optional)
|
Turn to side
|
°
|
Manual 90° (Automatic type for optional)
|
Lifting Height
|
mm
|
3700 /4500/ 5000
|
Manipulation
|
/
|
Walkie Type
|
Power
|
/
|
Tractive-type Free Maintence Battery
|
Controling type
|
/
|
Stepless adjusting speed
|
Battery
|
V/Ah
|
2*12/120
|
Charger
|
V/A
|
24/18
|
Climbing gradient
|
%
|
15
|
Braking type
|
/
|
Electromagnetic braking
|
Driving Motor
|
V/W
|
24/2200 / 24/2500
|
Lifting Motor
|
V/W
|
24/2200
|
Packing Size
|
mm
|
2780*990*1750 / 3180*1100*1780
|
Packing Weight
|
kg
|
1850 / 2080
|
Front Wheel Size
|
mm
|
Φ466*195 (Pneumatic Tires)
|
Front Wheel Qty
|
pcs
|
2 ( 2+2 Dual wheel optional)
|
Rear Wheel Size
|
mm
|
Solid Φ400*100 ( Pneumatic tires for optional)
|
Rear Wheel Qty
|
pcs
|
2
|
Pads Size
|
mm
|
Φ300
|
Pads Qty
|
pcs
|
6/8
|
