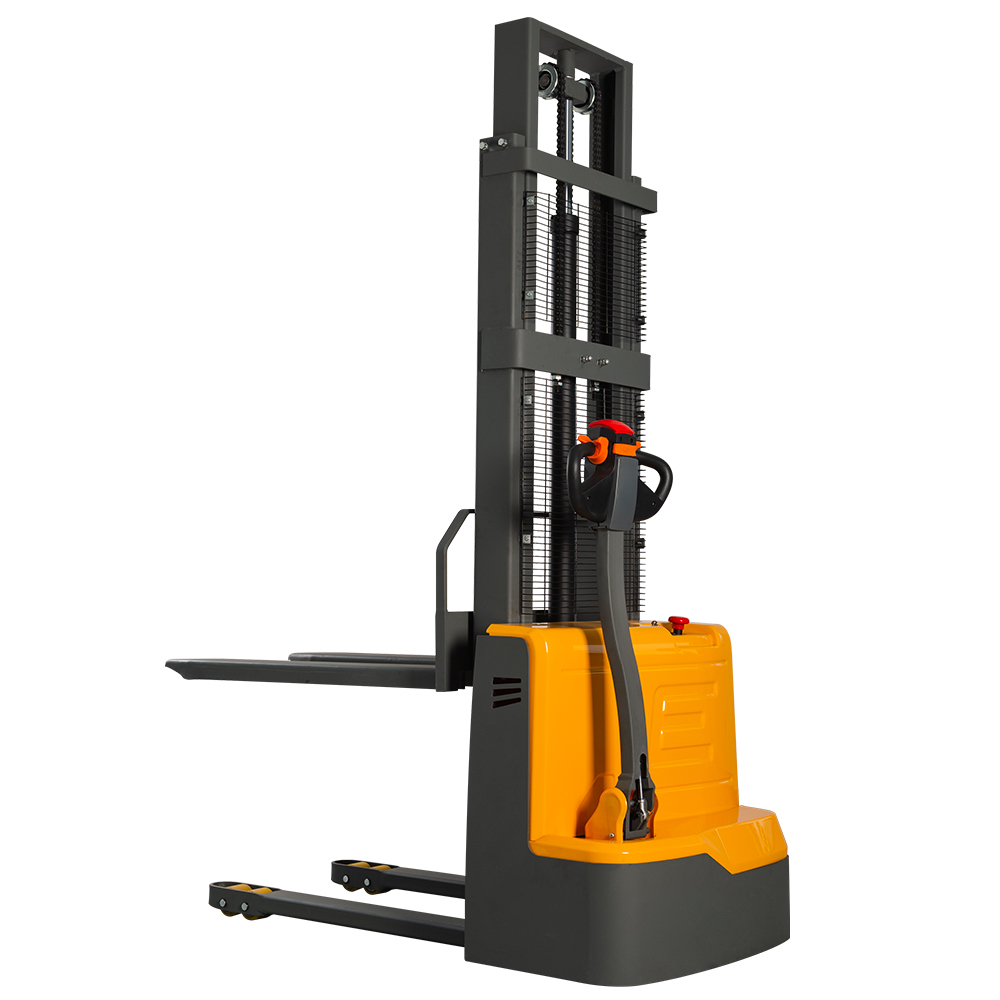

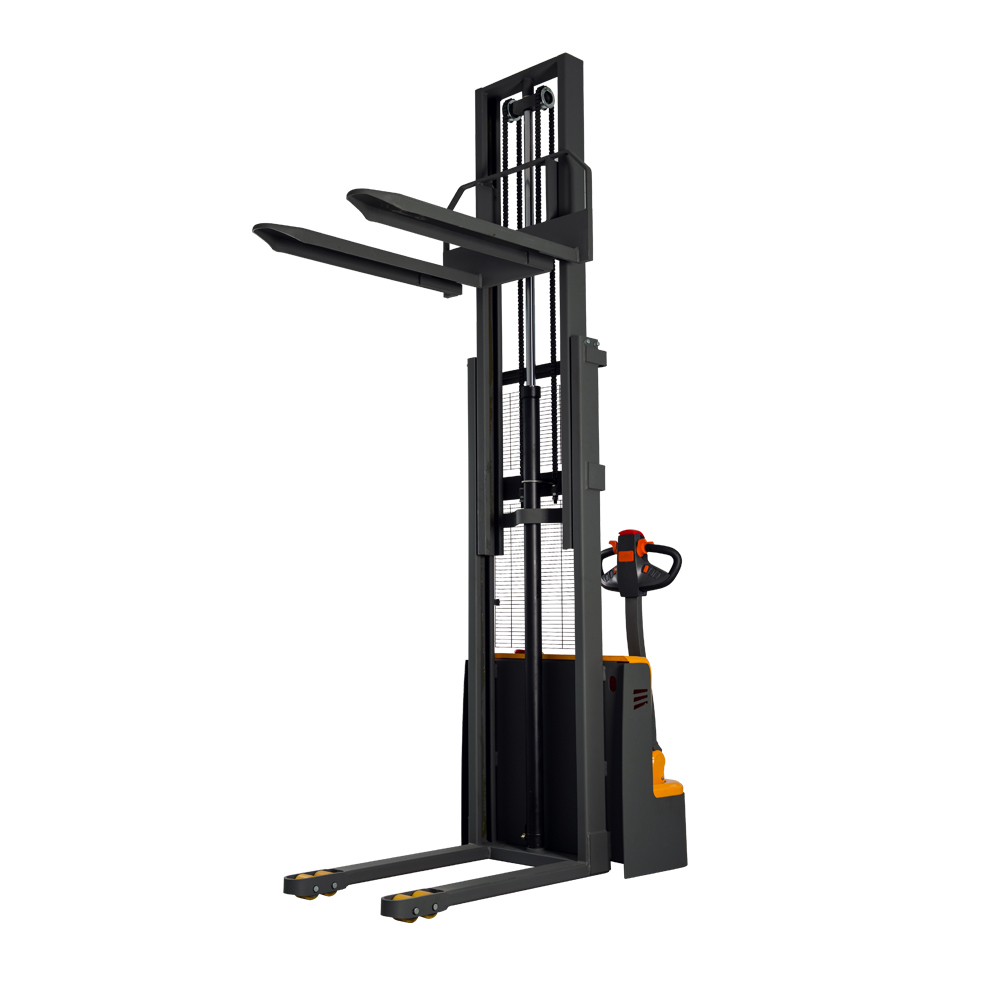

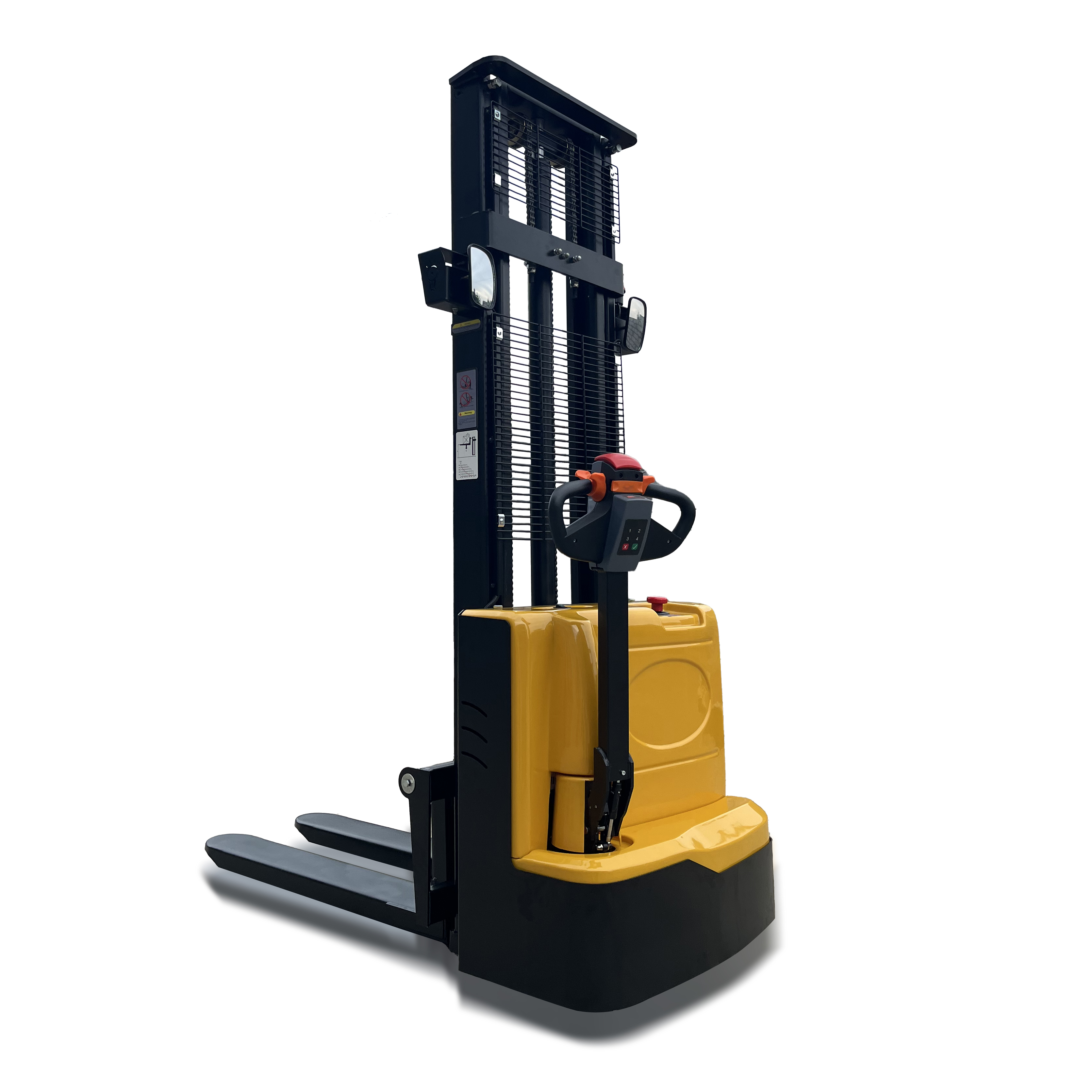

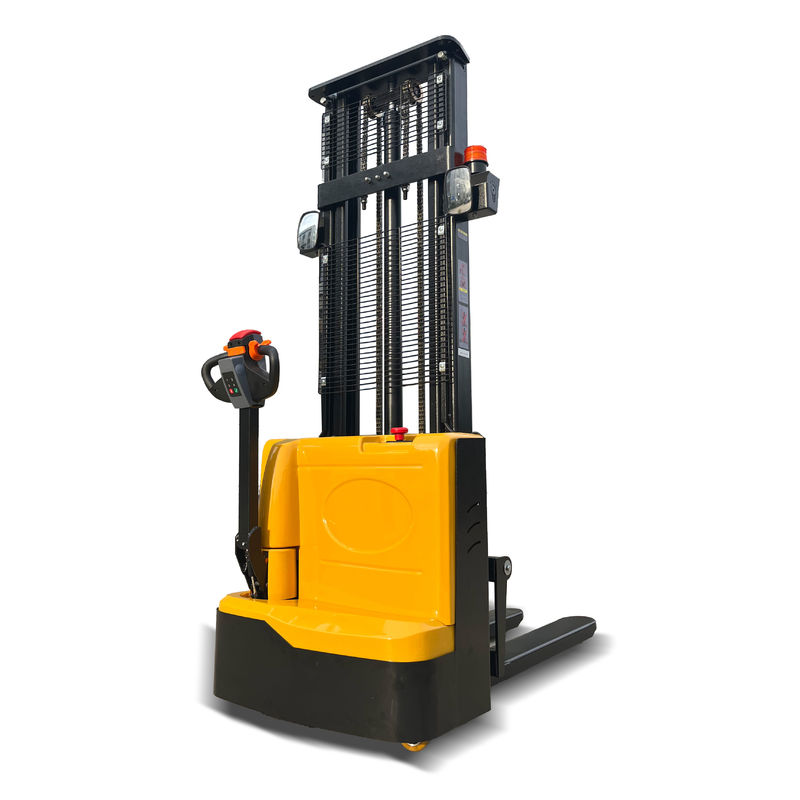

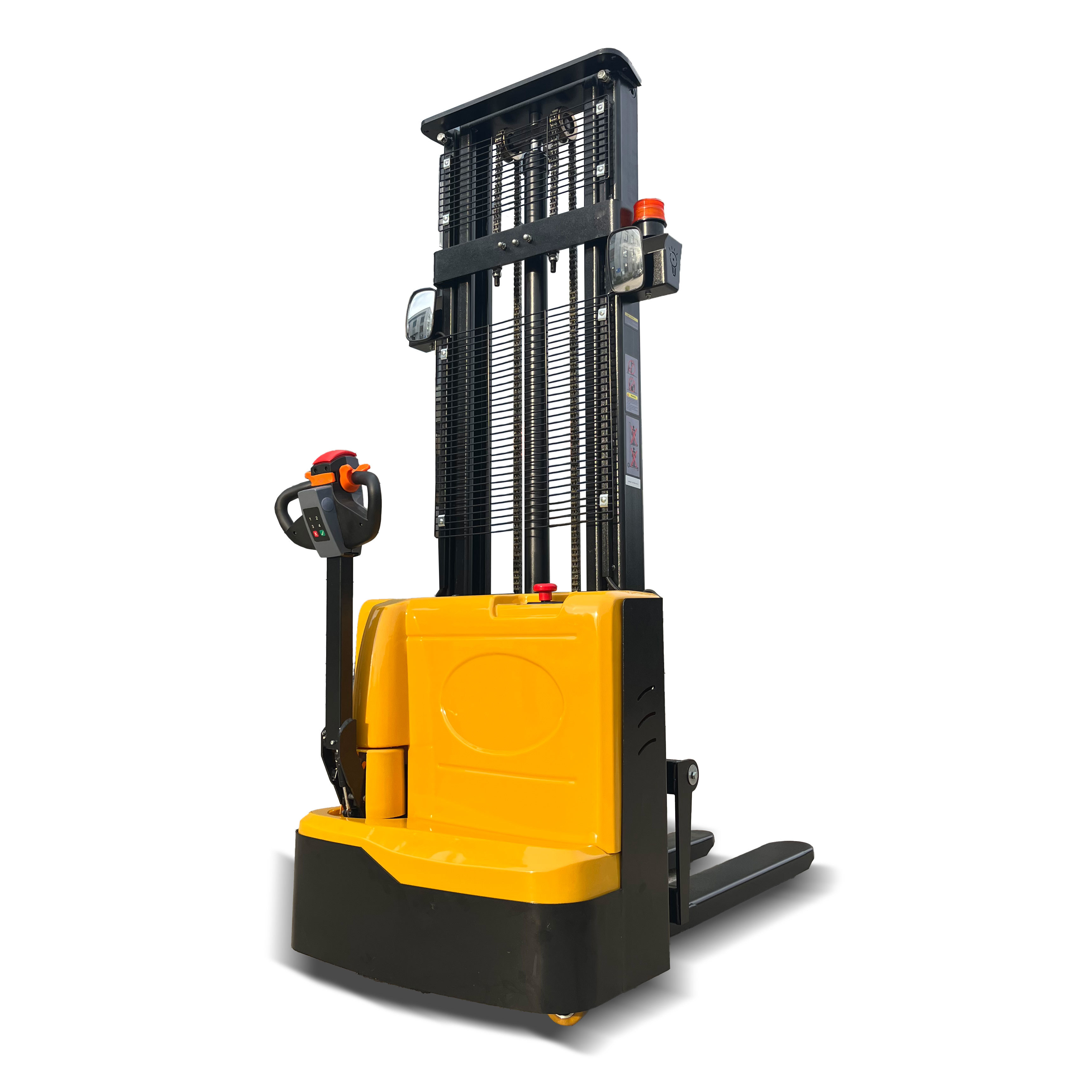

KAD CDDW1630 Electric Pallet Stacker 1600kg Load 3000mm Lift

Informazioni di base

Luogo di origine:	Jiangsu, Cina
Marca:	KAD

Quantità di ordine minimo:	1
Prezzo:	$1,285-1,680

Miglior prezzo Contattaci

Lunghezza forcella:	1070 mm	Larghezza della forcella:	550/680 mm
Centro di carico:	500 mm	Peso di carico:	1500 kg
Tensione della batteria:	24 V.	Capacità della batteria:	80Ah
Tipo di batteria:	Acido piombo	Min Altezza di sollevamento:	2080mm
Dimensioni complessive:	1770x850x2080mm	Peso:	500 kg
determinare velocità:	5.0 mm/s	Velocità di sollevamento:	140/135mm/s
Velocità di discesa:	150/155 mm/s	Motore di guida:	CC/0,75KW
Sollevamento del motore:	DC/2.2KW
Evidenziare:	1600kg electric pallet stacker , 3000mm lift pallet stacker , KAD electric pallet stacker

KAD CDDW1630 1600kg 3000mm Electric Pedestrian Stacker Hydraulic Walkie Forklift

Product Specifications

Attribute	Value
Condition	New
Fork Length	1070mm/customized
Fork Width	550/680mm/customized
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising
Terrain Adaptability	Indoor Flooring, Outdoor Pavement, other
Load Center	500 mm
Load weight	1500KG
Battery	24V/80Ah
Battery type	Lead acid battery
Power Source	DC MOTOR
Warranty	1 Year
Min. Lifting Height	2080mm
Overall Dimensions	1770(L)850(w)2080(h)
Weight (KG)	500 kg

Product Description

The KAD CDDW1630 electric pedestrian stacker is designed for small warehouses, production facilities, and retail environments. Its compact dimensions make it ideal for operation in limited spaces, optimizing daily working routines while saving labor.

Key Features

Curtis controller - Serviceable by any forklift service company worldwide
Integrated charger - Provides flexibility for modern supply chain needs
Maintenance-free batteries - No water addition required
High strength forks - Durable construction for heavy loads
Night operation lights - Ideal for warehouses with insufficient lighting
Safety features - Includes reverse rearview mirror and buzzing sound
Durable mast - 3-stage design supports heavy loads at 4-4.5m

Technical Specifications

Model	CDDW10	CDDW15
Drive system	Battery
Driving mode	Walkie
Load Capacity (KG)	1000	1500
Load Center (MM)	500
Lifting Height (MM)	1600/2000	2500/3000
Driving Speed (Empty/Full Load) (MM/S)	5.0/5.0
Lifting Speed (Empty/Full Load) (MM/S)	140/135
Battery Capacity (V/Ah)	24/80Ah

Main Components

Control Handle: Domestic famous control handle with functional buttons for UP/DOWN, FORWARD/BACKWARD control. Features Curtis brand accelerator for safe operation.

Our Services

Pre-Sales Service

Inquiry and consulting support
Sample testing support
Factory viewing available

After-Sales Service

Machine installation and operation training
Overseas engineer support for distributors

Frequently Asked Questions

Q1. What is your terms of packing?

A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or as negotiated.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
