Industrial Manual Scissor Lifter Heavy Duty Lifting Equipment

Informazioni di base

Luogo di origine:	Jiangsu, Cina
Marca:	KAD
Certificazione:	CE
Model Number:	MX580S

Minimum Order Quantity:	1unit
Prezzo:	$3000-$3500/unit
Packaging Details:	Iron pallet of Single Mast Aluminum Aerial Work Platform 8 Meters Vertical Lift
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100units/month

Miglior prezzo Contattaci

load capacity:	230kg	platform size:	1.67m*0.74m
Max. lifting height:	12m	Overall length:	1810m
Larghezza complessiva:	760 mm	Color:	Customers' Requirements
Garanzia:	1 anno	After-sales service provided:	Overseas service center available,Video technical support,Free spare parts
Applicazione:	Ampiamente,per laboratori,logistica e trasporti

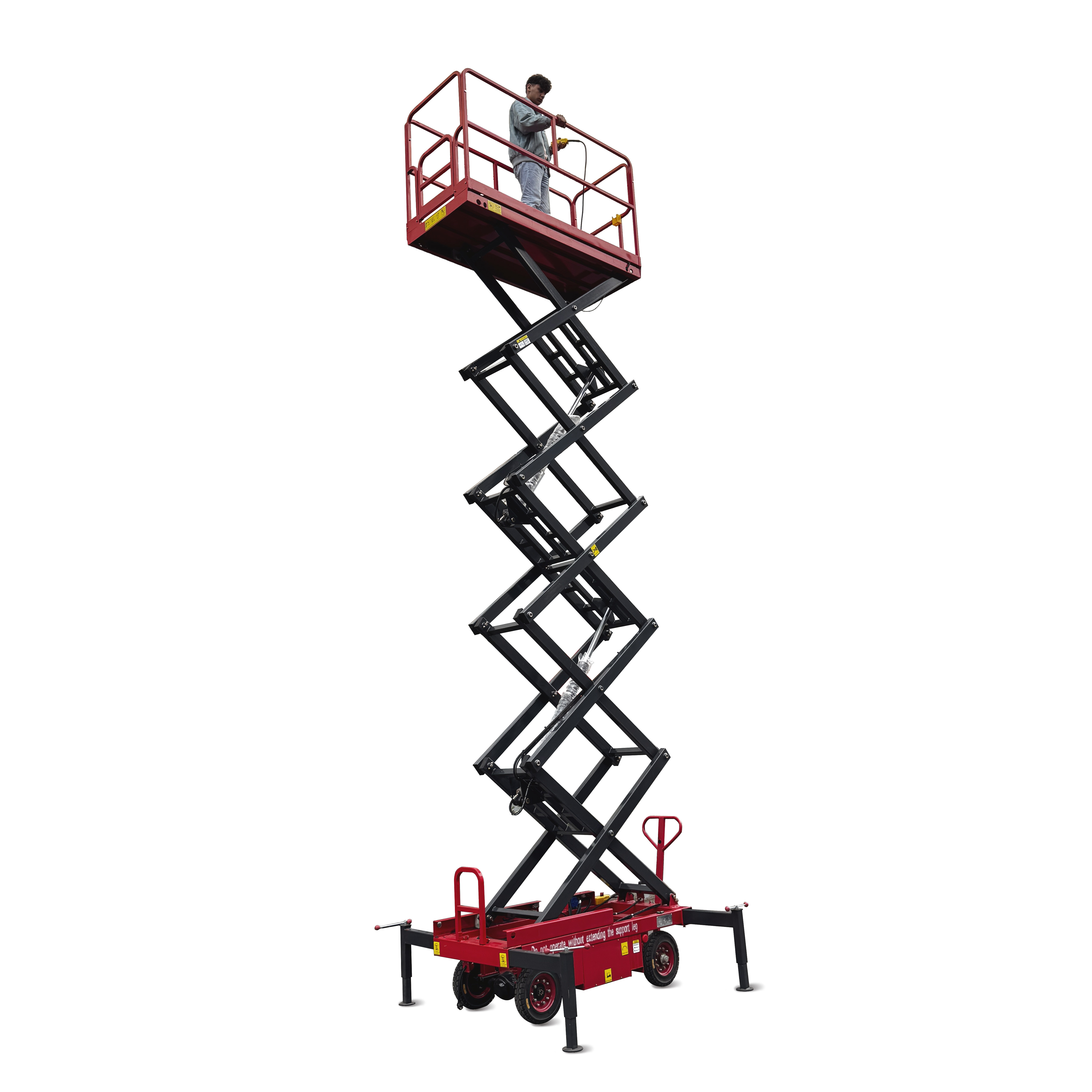

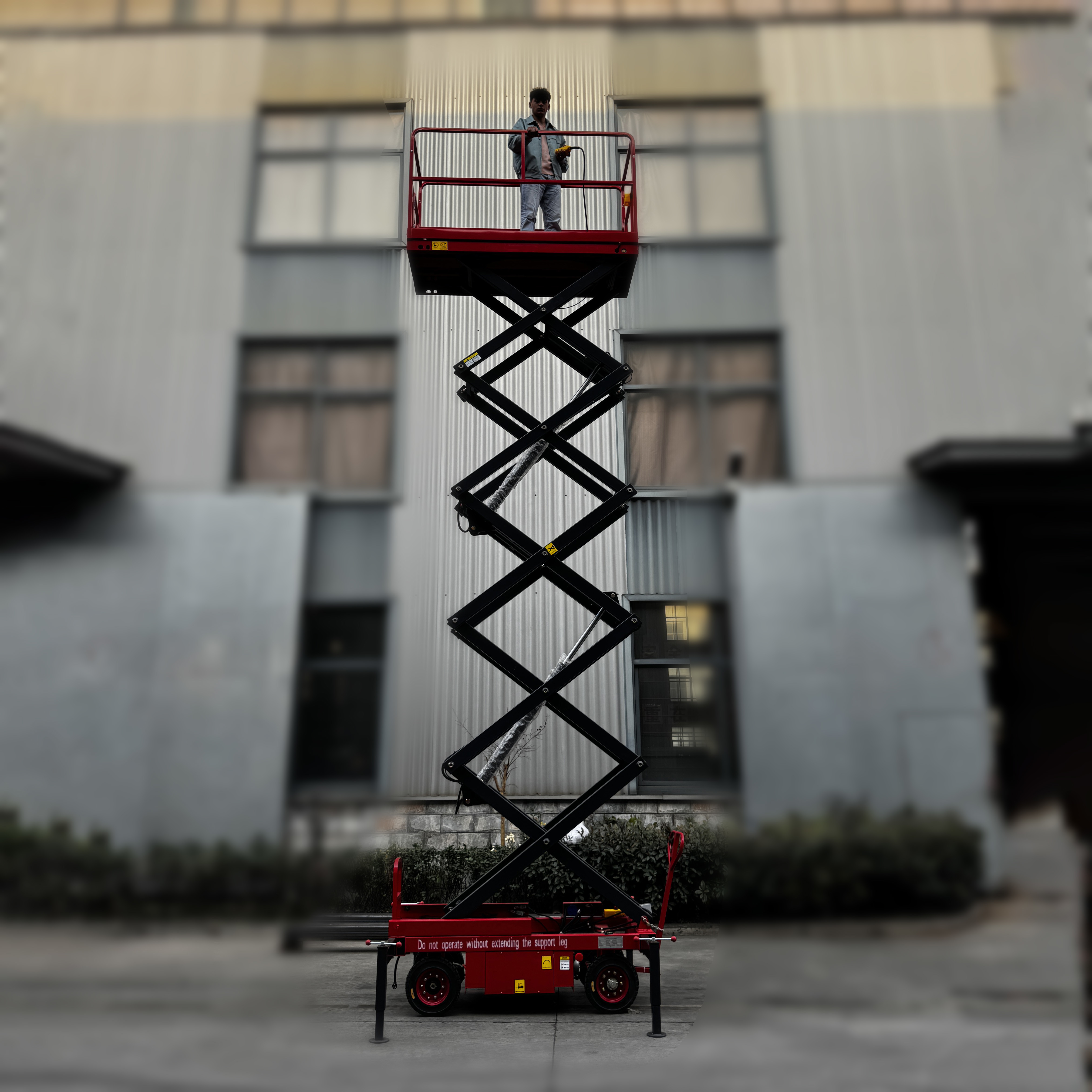

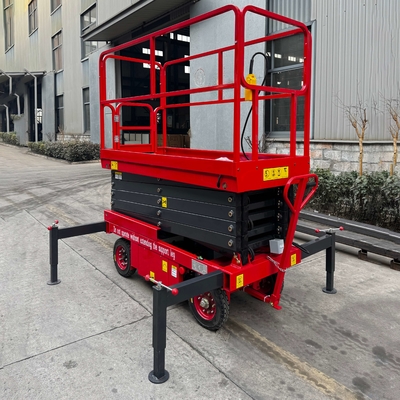

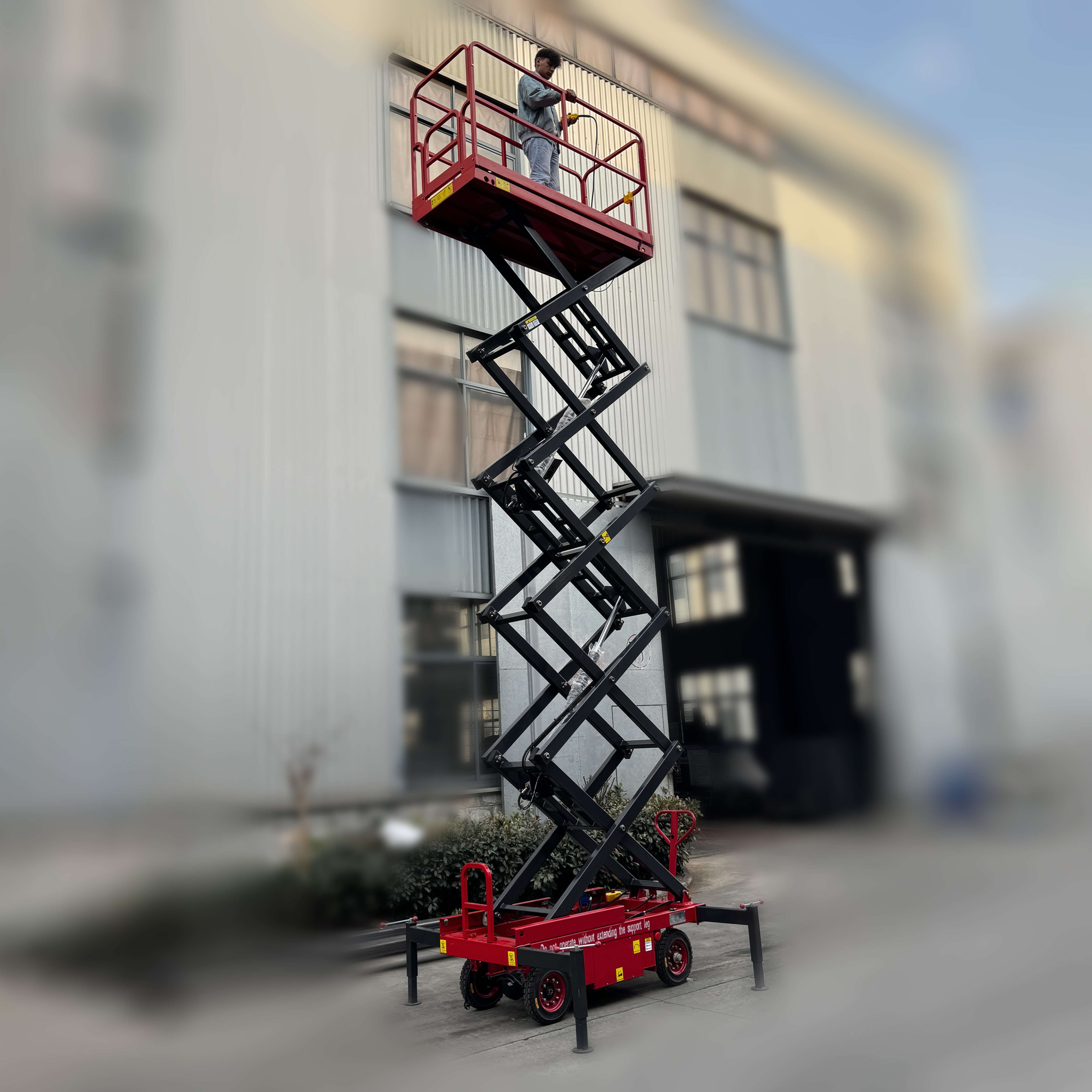

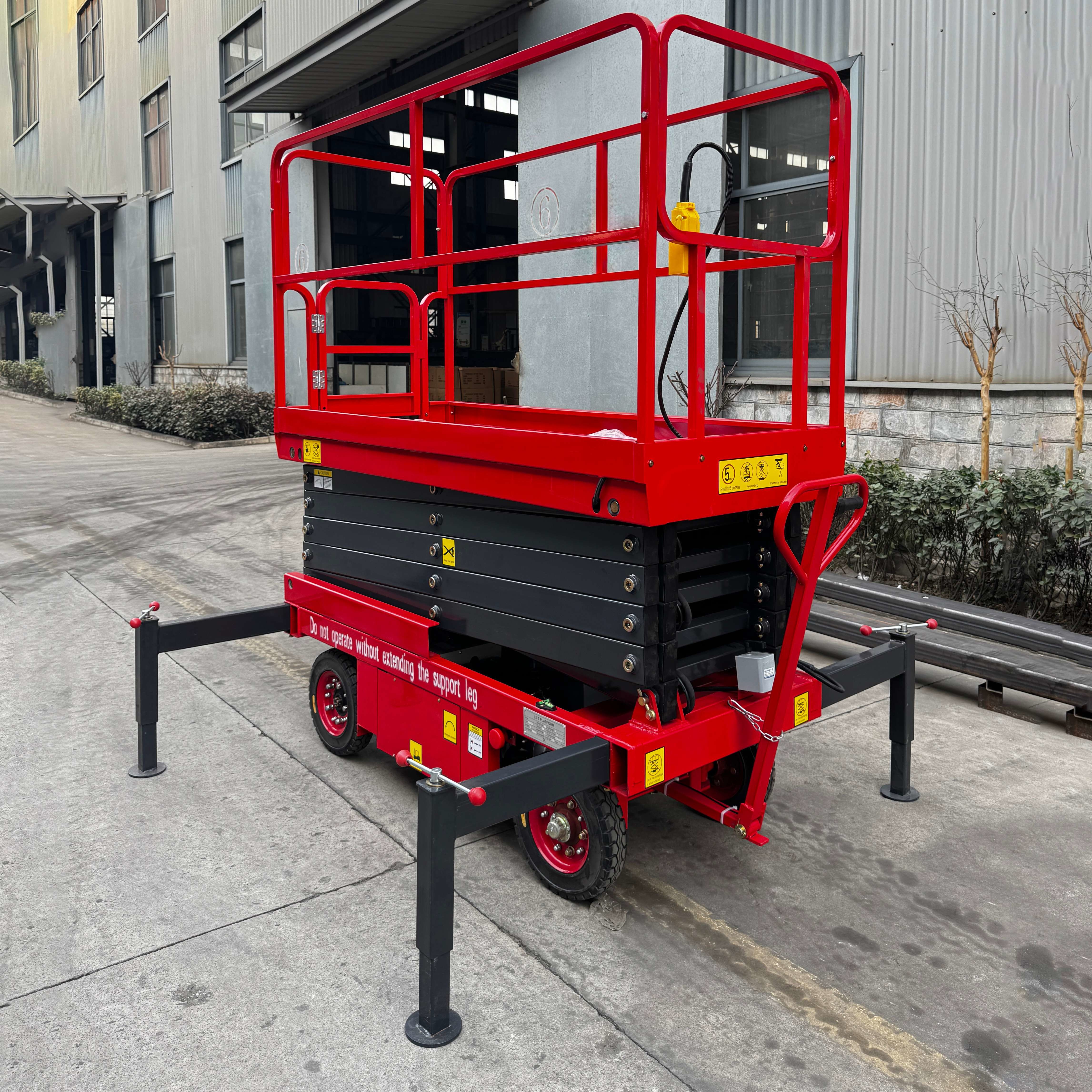

Industrial Manual Scissor Lifter Heavy Duty Lifting Equipment

Engineered for heavy-duty lifting jobs, this manual scissor lifter is built to withstand tough industrial conditions. It provides stable and safe elevation for machinery parts, tools, and other heavy cargo. The reinforced scissor arms and foot-operated hydraulic pump ensure powerful lifting with minimal effort. Whether you’re handling parts in a factory or moving stock in a large warehouse, this lifter offers reliability and strength.

Industrial Manual Scissor Lifter Heavy Duty Lifting Equipment 0

Model	MX580S	MX600SN	MX800SN	MX800S	MX1000S	MX1200S
S.W.L	230kg	230kg	230kg	450kg	320kg	320kg
S.W.L on Extension	113kg	113kg	113kg	113kg	113kg	113kg
Max.Workers Number	2	2	2	2	2	2
Working height max	7.8m	8m	10m	10m	12m	13.8m
Platform height max	5.8m	6m	8m	8m	10m	11.8m
Overall Length	1.81m	2.43m	2.43m	2.43m	2.43m	2.43m
Overall Width	0.76m	0.81m	0.81m	1.15m	1.15m	1.15m
Overall Height( Rails Up)	2.16m	2.18m	2.3m	2.31m	2.42m	2.55m
Overall Height( Rails Down)	1.82m	1.85m	1.87m	1.76m	1.91m	2.03m
Platform size(LxW)	1.67m*0.74m	2.27m*0.81m	2.27m*0.81m	2.27m*1.12m	2.27m*1.12m	2.27m*1.12m
Platform extension size	0.90m	0.90m	0.90m	0.90m	0.90m	0.90m
Ground Clearance ( Stowed)	0.09m	0.10m	0.10m	0.10m	0.10m	0.10m
Ground Clearance(Raised)	0.019m	0.019m	0.019m	0.019m	0.019m	0.019m
Wheelbase	1.36m	1.87m	1.87m	1.87m	1.87m	1.87m
Turning radius (inside)	0m	0m	0m	0m	0m	0m
Turning radius (outside)	1.64m	2.10m	2.10m	2.10m	2.10m	2.10m
Lift/Drive Motor	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/4.5kw
Travel Speed( Stowed)	3.0km/h	3.0km/h	3.0km/h	3.0km/h	3.0km/h	3.0km/h
Travel Speed( Raised)	1km/h	1km/h	1km/h	1km/h	1km/h	1km/h
Raise/Lower time	18/22sec	35/25sec	40/30sec	40/30sec	60/40sec	70/45sec
Power source	4*6V/210Ah	4*6V/225Ah	4*6V/225Ah	4*6V/225Ah	4*6V/240Ah	4*6V/260Ah
Charger	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A
Gradeability	25%	25%	25%	25%	25%	25%
