Warehouse Grade Full Electric Stacker 2 Ton Capacity 3 Meter Lift With Dual Lifting System

Informazioni di base

Luogo di origine:	Cina
Marca:	KAD
Certificazione:	CE
Numero di modello:	CDD15

Quantità di ordine minimo:	1 unità
Prezzo:	＄1200-＄1400 /unit
Imballaggi particolari:	Pallet in ferro + pellicola di plastica
Tempi di consegna:	10 giorni lavorativi
Termini di pagamento:	L/C,D/A,D/P,T/T,Western Union
Capacità di alimentazione:	500 unità/mese

Miglior prezzo Contattaci

Colore:	Rosso/Personalizzato	Nome del prodotto:	Carrello elevatore elettrico
Centro di carico:	500 mm	Capacità di carico:	1000-1500kg
Altezza del carico:	3000 mm	Caratteristica:	Alta efficienza
Capacità della batteria:	48V/32Ah
Evidenziare:	2 ton electric pallet stacker , warehouse grade electric stacker , dual lifting system pallet stacker

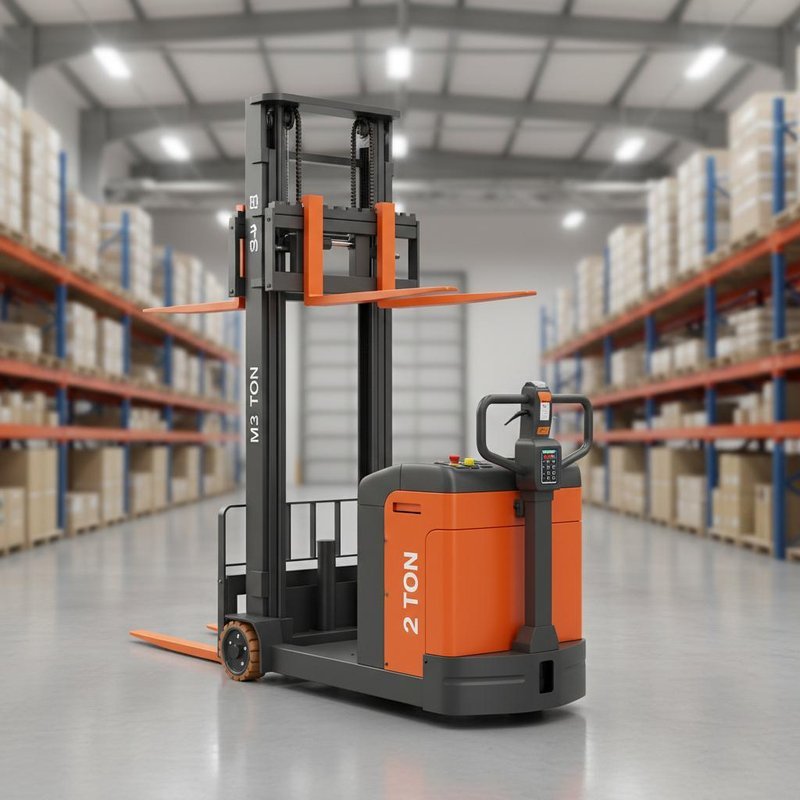

Warehouse Grade Full Electric Stacker 2 Ton Capacity 3 Meter Lift With Dual Lifting System

Boost warehouse efficiency with our Full Electric Initial Lift Stacker, designed for smooth and effortless pallet handling. Featuring a 3-meter lifting height and dual load capacity options (1.5T & 2T), this electric stacker ensures reliable performance in logistics, manufacturing, and storage operations.

Key Advantages

Full electric operation - No manual effort required, reducing worker fatigue
3m lifting range - Ideal for medium-to-high stacking tasks
1.5T/2T load capacity - Versatile for various pallet weights
Stable & durable - Robust construction for long-term industrial use
Easy maneuverability - Compact design for narrow aisles

Technical Specifications

Specification	Unit	Value
Power source		Battery
Rated load	kg	1500/2000
Load center	mm	500
Operation way		Standing operation, electric lifting, electric gripper, manual moving
Turning radius	mm	1500
Aisle width	mm	2560/2495
Length	mm	2040
Width	mm	830
Height	mm	2100
Mast		Two-Stage Mast
Max lifting height	mm	3000
Min height of forks	mm	200
Running speed (load/unload)	km/h	4.0/5.0
Hoisting speed (load/unload)	mm/s	0.08/0.135
Descent speed (load/unload)	mm/s	0.105/0.097
Climbing capability	%	5./10.
Braking mode		Electromagnetism
Tyres, material		Polyurethane
Load wheel dimensions	mm	80 × 70, 2pcs
Battery	v/ah	48/32
Weight	kg	620/750
